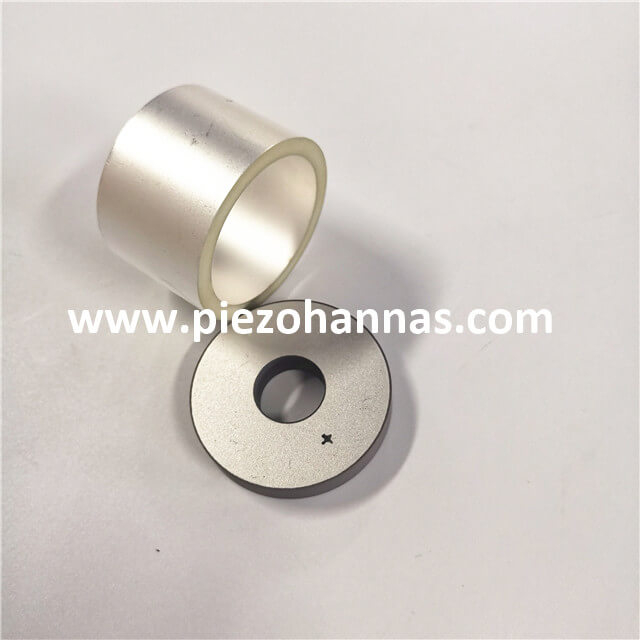

Custom Piezoelectric Ring for Tonpilz Transducer
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
l. Piezo ceramic Description:
Geometry | Size (mm) | Tolerance |
Piezo Discs | Diameter: 3 to 200 |
Tolerance according to the piezoelectric elements Industrial standard. |
Thickness: 0.2-25 | ||
Piezo Tubes | Length: 1-100 | |
OD: 6-180 | ||
ID: 5-150 | ||
Wall: 0.5-15 | ||
Piezo Plates | Length: 1-200 | |
Width: 1-200 | ||
Thickness: 0.2-25 | ||
Piezo Sphere | OD: 6-160 | |
ID: 4-150 | ||
Wall: 1-10 | ||
Piezo Rings | OD: 3-180 | |
ID: 1-150 | ||
Thickness : 0.2-25 | ||
For All Sizes | Flatness | ± 0.03 |
Concentricity | ± 0.10 | |
Perpendicularity | ± 0.10 | |
Parallelism | ± 0.05 |
PZT Soft Material:
"Soft" PZT materials | The type of soft material | ||||||||
Properties | PSnN-5 | PLiS-51 | PZT-51 | PZT-52 | PZT-53 | PZT-5H | PZT-5X | ||
Dielectric Constant | ɛTr3 | 1600 | 2000 | 2200 | 2400 | 2600 | 3200 | 4500 | |
Coupling factor | KP | 0.6 | 0.62 | 0.62 | 0.63 | 0.64 | 0.68 | 0.7 | |
K31 | 0.35 | 0.35 | 0.35 | 0.35 | 0.36 | 0.38 | 0.4 | ||
K33 | 0.68 | 0.7 | 0.68 | 0.7 | 0.7 | 0.76 | 0.77 | ||
Kt | 0.5 | 0.52 | 0.5 | 0.5 | 0.5 | 0.52 | 0.53 | ||
Piezoelectric coefficient | d31 | 10-12m/v | -170 | -197 | -186 | -204 | -227 | -275 | -300 |
d33 | 10-12m/v | 400 | 450 | 500 | 520 | 550 | 620 | 750 | |
g31 | 10-3vm/n | -12 | -11.1 | -9.6 | -9.8 | -9.9 | -9.7 | -7.5 | |
g33 | 10-3vm/n | 28 | 25.4 | 25.6 | 24.5 | 23.9 | 22 | 18.8 | |
Frequency coefficients | Np | 2000 | 1920 | 1980 | 1980 | 1960 | 1900 | 1960 | |
N1 | 1466 | 1407 | 1451 | 1451 | 1437 | 1393 | 1437 | ||
N3 | 1825 | 1925 | 1900 | 1900 | 1755 | 1550 | 1800 | ||
Nt | 2100 | 2100 | 2150 | 2150 | 2150 | 2100 | 2200 | ||
Elastic compliance coefficient | Se11 | 10-12m2/n | 16.6 | 18 | 16.7 | 17 | 17.4 | 18 | 19 |
Machanical quality factor | Qm | 85 | 80 | 80 | 75 | 75 | 70 | 65 | |
Dielectric loss factor | Tg δ | % | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Density | ρ | g/cm3 | 7.5 | 7.5 | 7.6 | 7.6 | 7.6 | 7.5 | 7.5 |
Curie Temperature | Tc | °C | 350 | 345 | 270 | 270 | 270 | 230 | 165 |
Young's modulus | YE11 | <109N/m2 | 60 | 56 | 60 | 59 | 57.5 | 56 | 53 |
Poison Ratio | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 | 0.39 | ||
PZT Hard Material:
Hard" PZT materials | PZT-41 | PZT-42 | PZT-43/4D | PZT-82 | PBaS-4 | ||
Dielectric Constant | ɛTr3 | 1050 | 1250 | 1420 | 1100 | 1900 | |
Coupling factor | KP | 0.58 | 0.58 | 0.58 | 0.52 | 0.59 | |
K31 | 0.32 | 0.33 | 0.34 | 0.3 | 0.34 | ||
K33 | 0.66 | 0.67 | 0.68 | 0.57 | 0.68 | ||
Kt | 0.48 | 0.48 | 0.48 | 0.4 | 0.49 | ||
Piezoelectric coefficient | d31 | 10-12m/v | -106 | -124 | -138 | -100 | -160 |
d33 | 10-12m/v | 260 | 280 | 300 | 240 | 380 | |
g31 | 10-3vm/n | -11.4 | -11.2 | -11 | -10.3 | -9.5 | |
g33 | 10-3vm/n | 28 | 25.3 | 24 | 25 | 22.6 | |
Frequency coefficients | Np | 2280 | 2200 | 2160 | 2280 | 2200 | |
N1 | 1671 | 1613 | 1583 | 1671 | 1613 | ||
N3 | 1950 | 1900 | 1875 | 1950 | 1850 | ||
Nt | 2250 | 2200 | 2200 | 2300 | 2200 | ||
Elastic compliance coefficient | Se11 | 10-12m2/n | 11.8 | 12.7 | 13.2 | 11.6 | 13.2 |
Machanical quality factor | Qm | 1000 | 800 | 600 | 1200 | 2200 | |
Dielectric loss factor | Tg δ | % | 0.3 | 0.4 | 0.5 | 0.3 | 0.5 |
Density | ρ | g/cm3 | 7.5 | 7.5 | 7.5 | 7.6 | 7.5 |
Curie Temperature | Tc | °C | 320 | 320 | 320 | 310 | 310 |
Young's modulus | YE11 | <109N/m3 | 85 | 79 | 76 | 86 | 76 |
Poison Ratio | 0.3 | 0.3 | 0.3 | 0.3 | 0.33 |
Package Details:
FAQ:
1.About piezoelectric ceramics, why it has polarity?
Piezoelectric ceramics have the polarity reason because when the piezoelectric ceramics are under stress, the two surfaces have the charge accumulation, thereby generating a certain voltage. Since the molecules are polar, they are divided into positive and negative electrodes. In the macroscopic terms, it is the accumulation of electric charges, and then the piezoelectric ceramics have positive and negative electrodes.
2.About the piezoelectric ceramic application,Can you explain them ?
ultrasonic surgery instruments,Lithotripters,Plaque removal ,Surgical knives,Ultrasonic nebulizers for inhalers ,Ultrasonic diagnostics and therapy,Ultrasonic Surgery,Medical Diagnostics and Monitoring,structural health monitoring (SHM),ultrasound scanners for medical imaging,NDT/Non-Destructive Testing,ultrasonic flow meters ,Ultrasonic mixing,diagnostic medical ultrasound,Medical Aesthetic,HIFU Liposonix Fat Loss Machine,ultrasonic surgery,beauty transducer,accelerometers,ultrasonic level sensors,ultrasonic atomizers,ultrasonic micro-bonding apparatus,ultrasonic welding,ultrasonic cleaner,piezo transducer vibration,atomizer transducer,matter dispersion,impact-type gas ignitors,precise movement control,pressure sensors ,impact-type gas ignitors,precise movement control,microphones,musical pick-ups,high stress pressure sensors,ignitors high power actuators,vibratory motors,material stress sensor,DOD inkjet printhead,3D printer,piezo electricity harvesting,biomedical probe,piezo electricity harvesting,compression sensor,piezo expansion sensor,Sonochemistry,Cryogenic SEMs,Ultrasonic Scalers,Fetal Dopplers,Doppler Ultrasound equipment,heart reflectoscope reflector,pedometer
3.About piezoelectric ceramic transducer, which is the effect of using piezoelectric ceramics? ?
About piezoelectric ceramic transducers, which utilize the two major effects of piezoelectric ceramics, in particular, the transducers use the inverse piezoelectric effect when they emit, and they utilize positive piezoelectric effect when is receiving ,In turn, let this kind of transducer work and use normally.
