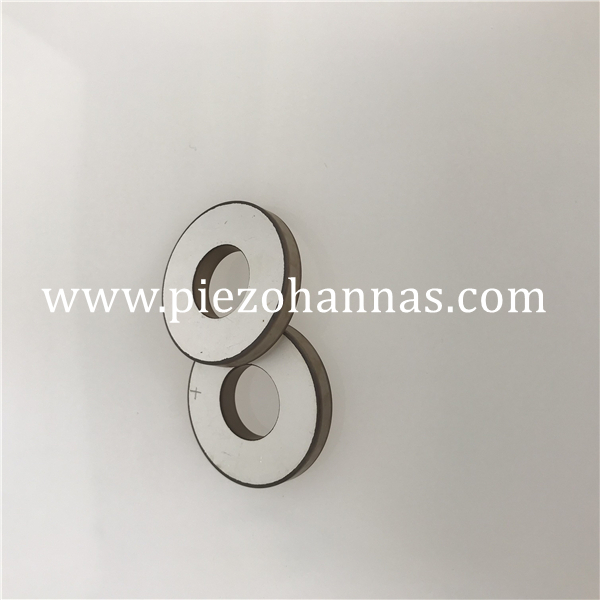

Custom Piezoceramic Ring Componnets for Ultrasonic Welder
1.Product Description
- Piezo Material: PZT-8
- Dimensions: OD50*ID20*6mm
- Resonant Frequency: 33±5%KHZ
- Static Capacitance: 2500±20%PF
-Resonant Impedance≤100
-Electrode :silver electrode

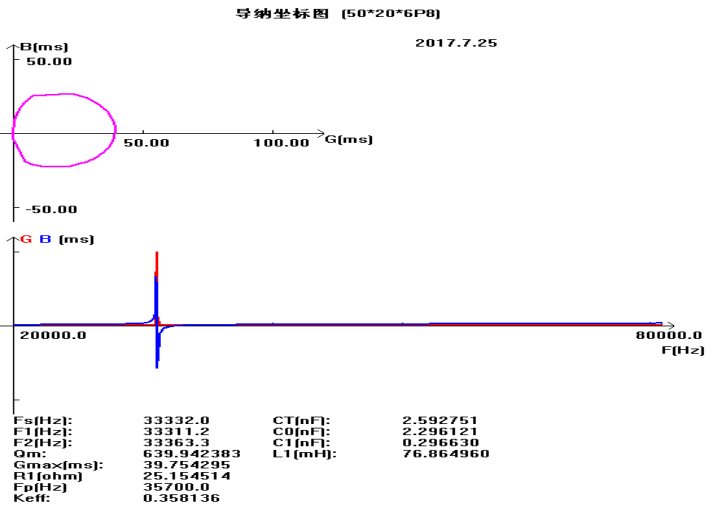

Admittance curve:
2. Piezo Ring FOR Ultrasonic Welding in stock:
OD38*ID15*5mm
OD45*ID15*5mm
OD50*ID17*5mm
OD50*ID23*5mm
OD50*ID23*6(6.5)mm
Range Of piezo ceramic ring
External diameter: 5.0 - 100mm
Internal diameter :(2.0 - 35mm)
Thickness : (0.2 - 15mm)
Choice of metallisation (Silver, Nickel, Gold and others on request)
Wide choice of PZT formulations
4.Typical value of "Hard" PZT materials performance：
Hard" PZT materials | |||||||
Properties | PZT-41 | PZT-42 | PZT-43 | PZT-82 | PBaS-4 | ||
Dielectric Constant | ɛTr3 | 1050 | 1250 | 1420 | 1100 | 1900 | |
Coupling factor | KP | 0.58 | 0.58 | 0.58 | 0.52 | 0.59 | |
K31 | 0.32 | 0.33 | 0.34 | 0.3 | 0.34 | ||
K33 | 0.66 | 0.67 | 0.68 | 0.57 | 0.68 | ||
Kt | 0.48 | 0.48 | 0.48 | 0.4 | 0.49 | ||
Piezoelectric coefficient | d31 | 10-12m/v | -106 | -124 | -138 | -100 | -160 |
d33 | 10-12m/v | 260 | 280 | 300 | 240 | 380 | |
g31 | 10-3vm/n | -11.4 | -11.2 | -11 | -10.3 | -9.5 | |
g33 | 10-3vm/n | 28 | 25.3 | 24 | 25 | 22.6 | |
Frequency coefficients | Np | 2280 | 2200 | 2160 | 2280 | 2200 | |
N1 | 1671 | 1613 | 1583 | 1671 | 1613 | ||
N3 | 1950 | 1900 | 1875 | 1950 | 1850 | ||
Nt | 2250 | 2200 | 2200 | 2300 | 2200 | ||
Elastic compliance coefficient | Se11 | 10-12m2/n | 11.8 | 12.7 | 13.2 | 11.6 | 13.2 |
Machanical quality factor | Qm | 1000 | 800 | 600 | 1200 | 2200 | |
Dielectric loss factor | Tg δ | % | 0.3 | 0.4 | 0.5 | 0.3 | 0.5 |
Density | ρ | g/cm3 | 7.5 | 7.5 | 7.5 | 7.6 | 7.5 |
Curie Temperature | Tc | °C | 320 | 320 | 320 | 310 | 310 |
Young's modulus | YE11 | <109N/m3 | 85 | 79 | 76 | 86 | 76 |
Poison Ratio | 0.3 | 0.3 | 0.3 | 0.3 | 0.33 |
5. STANDARD MECHANICAL TOLERANCES:
Outside Diameter ±0.150mm
Inside Diameter ±0.150mm
Thickness ±0.05mm
Flatness 0.002**/0.012mm MAX
Parallelism 0.007**/0.012mm MAX
Concentricity 0.2mm
6. Mask Machine Applications:
50*17*6.5mm Piezo ring is used for welding machine,Duo to Corona Virus ,the rapid requirements of piezo ring is needed in China and abroad, it is the basic component for mask machine.
