Cheap Piezo Elements Transducer for Knock Sensor

Share to:

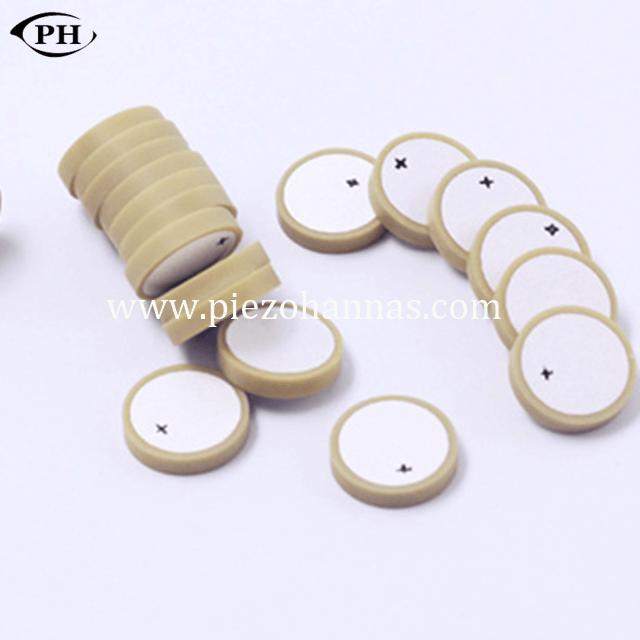

Cheap Piezo Elements Transducer for Knock Sensor

Name: Cheap Piezo Elements Transducer for Knock Sensor
Brand: Piezohannas
Rating: 5.0 (99 reviews)

Dimension (diameter×thickness): 30mmx5.5mm
Piezo disc range to produce:
Diameter: 4.0 - 100mm
Thickness: 0.1 - 15mm

Application:
Humidifier
Ultrasonic medical machine
Ultrasonic cleaning transducer
Thickness gauges
Underwater echo sounders

Availability:

Quantity:



Inquire Add to Basket

Model:
PD1000K034
Brand:
Piezohannas
Code:
PD1000K034

Product Description

Dimension (diameter×thickness)

: 30mmx5.5mm

Piezoelectric material : PZT4,PZT5,PZT8

Piezo disc range to produce:
Diameter: 4.0 - 100mm
Thickness: 0.1 - 15mm

Electrical Characteristics:

Resonant Frequency (KHz )	75
Capacitance (Cp)	1300
Dielectric loss (tgδ)	0.3
Coupling Factor - kp	0.58

Warm Tips: We can customize various piezoelectric ceramics as required.

Pizeo Ceramic List


cheap piezo elements transducer cheap piezometer disc crystal piezo transducer disc crystal piezo element for knock sensor cheap piezoelectric transducer PZT 5 piezo transducer for knock sensor piezoelectric disc for knock sensor piezo element disc with PZT material electricpiezo element for knock sensor cheap electrode PZT material

Hubei Hannas Tech Co.,Ltd is a professional piezoelectric ceramics and ultrasonic transducer manufacturer, dedicated to ultrasonic technology and industrial applications.
