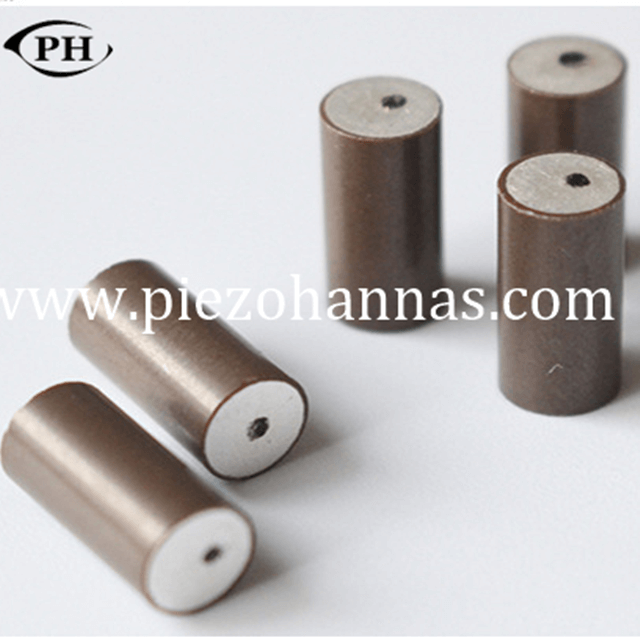

40 Khz High Power Acoustic Cylindrical Piezoelectric Transducer

Share to:

40 Khz High Power Acoustic Cylindrical Piezoelectric Transducer

Name: 40 Khz High Power Acoustic Cylindrical Piezoelectric Transducer
Brand: Piezohannas
Rating: 5.0 (79 reviews)

Dimension (diameter×thickness):38mmx6.2mm
Piezo disc range to produce:
Diameter: 4.0 - 100mm
Thickness: 0.1 - 15mm

Application:
Humidifier
Ultrasonic medical machine
Ultrasonic cleaning transducer
Thickness gauges
Underwater echo sounders

Availability:

Quantity:



Inquire Add to Basket

Model:
PD1000K038
Brand:
Piezohannas
Code:
PD1000K038

Product Description

Dimension (diameter×thickness)

: 38mmx6.2mm

Piezoelectric material : PZT4,PZT5,PZT8

Piezo disc range to produce:
Diameter: 4.0 - 100mm
Thickness: 0.1 - 15mm

Electrical Characteristics:

Resonant Frequency (KHz )	58
Capacitance (Cp)	2000
Dielectric loss (tgδ)	0.3
Coupling Factor - kp	0.58

Warm Tips: We can customize various piezoelectric ceramics as required.
