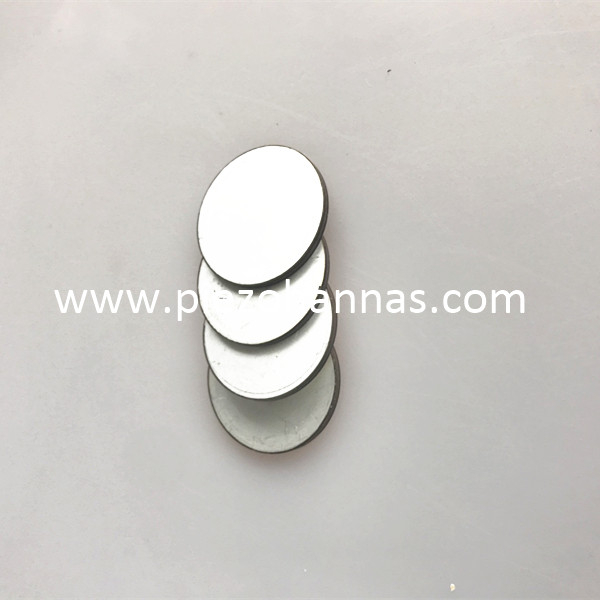

2Mhz Piezo Disc Transducer Material for Ultrasonic Flowmeter
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
Piezo Ceramics Disc Description:
Resonant frequency fr: 2 MHz±5 %
Electromechanical coupling coefficient K31:≥0.60
Static capacitance Cs: 3100pF±15%
Test Condition: 23±3 °C 40~70% R.H.
Dielectric Loss tg δ: <2%
Application: Ultrasonic Fowmeter,Gas Fowmeter
Dimensions for Ultrasound Flowmeter in stock:
Ultrasound Flowmeter Applications:
Piezoceramic transducers to produce ultrasonic signal for the measurement of flow rate of liquid in a pipeline where direct contact of the liquid is a concern.
An ultrasonic flow meter can be used to measure the flow rate of a liquid passing a predetermined point in a pipe. As a measuring method that will not disrupt the liquid flow, piezoelectric transducer is placed on the tube wall and transmits ultrasonic wave into the liquid perpendicularly to the direction of the flow. The frequency shift between the transmitted and received ultrasonic waves is evaluated and velocity of liquid in a pipe is determined.
range of piezo disc to produce:
Diameter: 2mm-120mm
Thickness:0.1mm-30mm
PZT Soft Material:
"Soft" PZT materials | The type of soft material | ||||||||
Properties | PSnN-5 | PLiS-51 | PZT-51 | PZT-52 | PZT-53 | PZT-5H | PZT-5X | ||
Dielectric Constant | ɛTr3 | 1600 | 2000 | 2200 | 2400 | 2600 | 3200 | 4500 | |
Coupling factor | KP | 0.6 | 0.62 | 0.62 | 0.63 | 0.64 | 0.68 | 0.7 | |
K31 | 0.35 | 0.35 | 0.35 | 0.35 | 0.36 | 0.38 | 0.4 | ||
K33 | 0.68 | 0.7 | 0.68 | 0.7 | 0.7 | 0.76 | 0.77 | ||
Kt | 0.5 | 0.52 | 0.5 | 0.5 | 0.5 | 0.52 | 0.53 | ||
Piezoelectric coefficient | d31 | 10-12m/v | -170 | -197 | -186 | -204 | -227 | -275 | -300 |
d33 | 10-12m/v | 400 | 450 | 500 | 520 | 550 | 620 | 750 | |
g31 | 10-3vm/n | -12 | -11.1 | -9.6 | -9.8 | -9.9 | -9.7 | -7.5 | |
g33 | 10-3vm/n | 28 | 25.4 | 25.6 | 24.5 | 23.9 | 22 | 18.8 | |
Frequency coefficients | Np | 2000 | 1920 | 1980 | 1980 | 1960 | 1900 | 1960 | |
N1 | 1466 | 1407 | 1451 | 1451 | 1437 | 1393 | 1437 | ||
N3 | 1825 | 1925 | 1900 | 1900 | 1755 | 1550 | 1800 | ||
Nt | 2100 | 2100 | 2150 | 2150 | 2150 | 2100 | 2200 | ||
Elastic compliance coefficient | Se11 | 10-12m2/n | 16.6 | 18 | 16.7 | 17 | 17.4 | 18 | 19 |
Machanical quality factor | Qm | 85 | 80 | 80 | 75 | 75 | 70 | 65 | |
Dielectric loss factor | Tg δ | % | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Density | ρ | g/cm3 | 7.5 | 7.5 | 7.6 | 7.6 | 7.6 | 7.5 | 7.5 |
Curie Temperature | Tc | °C | 350 | 345 | 270 | 270 | 270 | 230 | 165 |
Young's modulus | YE11 | <109N/m2 | 60 | 56 | 60 | 59 | 57.5 | 56 | 53 |
Poison Ratio | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 | 0.39 | ||
