200 KHZ piezoelectric ceramic disc parts for fishing finder transducer

Piezoelectric material : P-44
Dimension: diameter is 27.4mm
Electrical Characteristics:
1. Resonant Frequency : 200KHZ ± 5%

2. Resonant Resistance (R) : <35ohm

3. Coupling Factor (KP) : 0. 35%

4. Capacitance (Cp) : 700 PF ± 20%

5. Dielectric loss :<0.5%

Application:
Fishing Finder Transducer

Quantity:
  • PZ1000K0058
  • Piezohannas
  • PZ1000K0058

                   200 KHZ Barium Titanate Piezoelectric Ceramic Disc Parts for Fish Detector



WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.



purchase stock piezoelectric disk



piezoelectric ceramic disk



31AFB9AEF0A775B05FBF843CEB753E4E.jpg  piezo ceramic for fishing finder transducer


Electrical Characteristics:


Piezoelectric material : P-44
Dimension: diameter is 27.4mm

1.  Resonant Frequency  : 200KHZ ± 5%

2.  Resonant Resistance (R) : <35ohm

 3.  Coupling Factor (KP) : 0. 35%

4.  Capacitance (Cp) : 700 PF ± 20%

5.  Dielectric loss :<0.5%


Standard Size of Piezo Discs:


range of piezo disc to produce:

Diameter: 2mm-120mm
Thickness:0.1mm-30mm



PZT Material:



- PZT4 Piezoelectric ceramics have a double behavior of receiving and transmitting, with higher sensitivity and lower dielectric loss.

- PZT5 Piezoelectric ceramics have higher electro-mechanical coupling coefficient, the moderate dielectric constant and higher sensitivity.

- PZT8 Piezoelectric ceramics of high power transmission type have good piezoelectric property, high mechanical strength, high coercive field, low dielectric loss in strong fields.

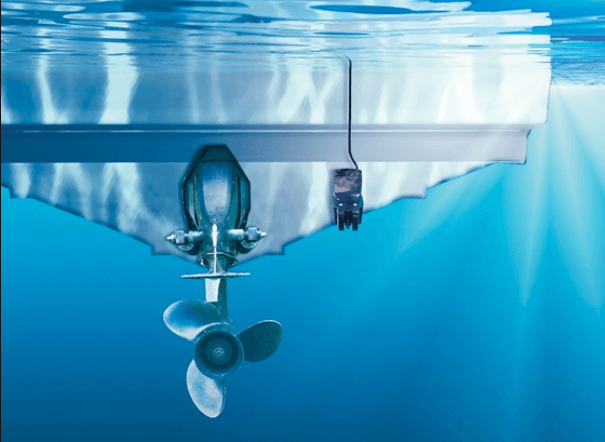

Application Image:


R)]4`VZJG}Z[9HY$3N{9GSJ




Piezo Hannas (WuHan) Tech Co,.Ltd  is a professional piezoelectric ceramics and ultrasonic transducer manufacturer, dedicated to ultrasonic technology and industrial applications.
