1Mhz piezoelectric material piezos discs transducer

                                   Piezoelectric Ceramic Disc Transducer

WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.

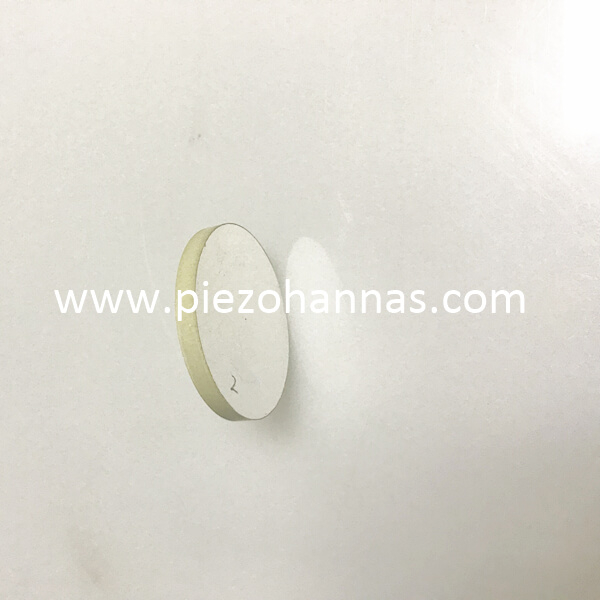

Piezo Ceramics Disc Description:

- Piezo Material: PZT-4
- Dimensions: Φ10×1mm
-Thickness frequency(MHZ):2±15%
- Resonance Impedance: ≤ 2Ω
- Static Capacitance: 800 ± 15%PF
- Electrode: Nickel electrodes on each side
- Vibration mode: Thickness mode

Standard Size of Piezo Discs:

range of piezo disc to produce:

Diameter: 2mm-120mm
Thickness:0.1mm-30mm

Manufacturing process:
