QDS5
PIEZOHANNAS
QDS5

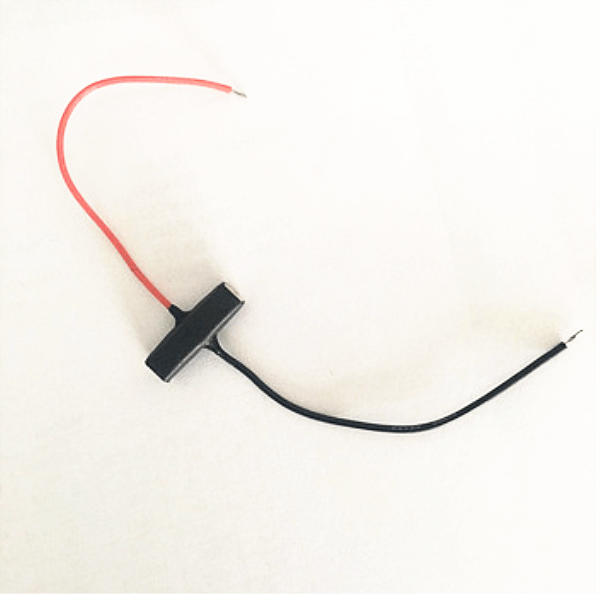

150V Driving Force Piezoelectric Stack Actuator Piezo Ceramic Wafers
Introduction:
Stack actuators utilize super thin piezo-ceramic wafers, bonded in a stack to provide high sensitivity, rapid response sensing and low driver voltage displacement and force actuation, both with outstanding cycle rates and superb reliability. They are used widely for the accurate displacement control of equipment, and are commonplace in optical, semiconductor, aviation, medical and genetic engineering fields.
Paramenters:
1．Material:Piezoelectric ceramic
2．D33≥750
3．D31≥-320
4．εT33/ε04500
5．Operateing Temperature：-20 to + 60 ℃

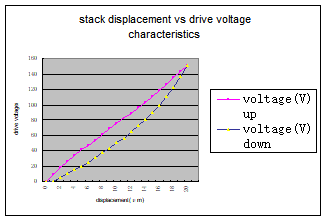

Character Curve：(Reference Sample：QDS5×5-18)
Normal Model:

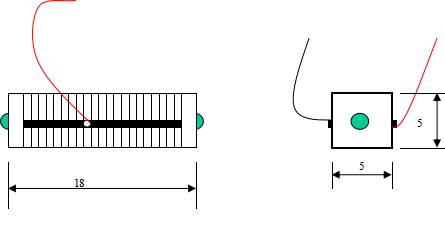

Model | Dimensions (mm) | Driver Voltage (max) | Displacement (max) | Force (max) |
QDS5×5-18 | 5.1×5.1×20.5 | 150V DC | 18μm±5% | 1000N |
QDS5×5-30 | 5.2×5.2×38 | 150V DC | 30μm±10% | 2000N |
QDS5×5-98 | 5.2×5.2×98 | 150V DC | 98μm±10% | 2000N |
QDS10×10-36 | 10.2×10.2×38 | 150V DC | 36μm±5% | 4000N |
Notes: Customized special dimensions, lead cable, packages etc.
