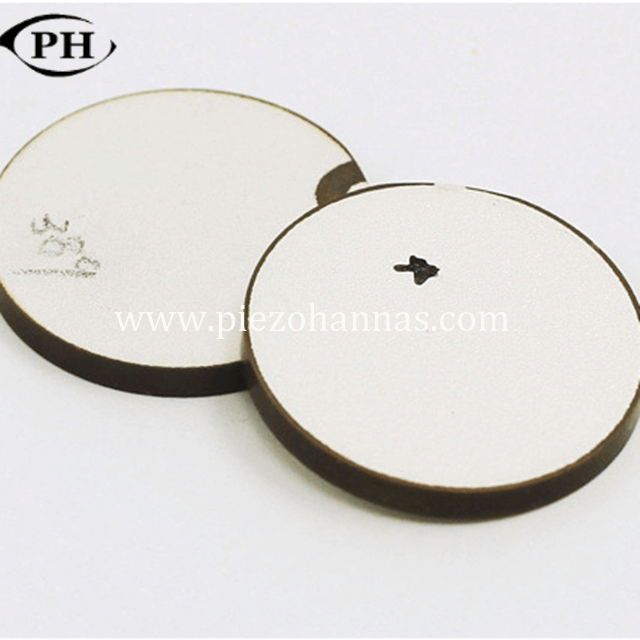

10 Khz Soldering Piezoelectric Disc Element for Knock Sensor

Share to:

10 Khz Soldering Piezoelectric Disc Element for Knock Sensor

Name: 10 Khz Soldering Piezoelectric Disc Element for Knock Sensor
Brand: Piezohannas
Rating: 5.0 (44 reviews)

Dimension (diameter×thickness): 30mmx6.2mm
Piezo disc range to produce:
Diameter: 4.0 - 100mm
Thickness: 0.1 - 15mm

Application:
Humidifier
Ultrasonic medical machine
Ultrasonic cleaning transducer
Thickness gauges
Underwater echo sounders

Availability:

Quantity:



Inquire Add to Basket

Model:
PD1000K035
Brand:
Piezohannas
Code:
PD1000K035

Product Description

Dimension (diameter×thickness)

: 30mmx6.2mm

Piezoelectric material : PZT4,PZT5,PZT8

Piezo disc range to produce:
Diameter: 4.0 - 100mm
Thickness: 0.1 - 15mm

Electrical Characteristics:

Resonant Frequency (KHz )	75
Capacitance (Cp)	1200
Dielectric loss (tgδ)	0.3
Coupling Factor - kp	0.58

Warm Tips: We can customize various piezoelectric ceramics as required.

Pizeo Ceramic List


10 Khz piezoelectric disc element 10 Khz soldering piezometer disc crystal piezo transducer disc crystal piezo element for knock sensor 10 Khz soldering piezoelectric transducer piezo transducer for knock sensor piezoelectric disc for knock sensor piezoelectric disc element with PZT material electricpiezo element for knock sensor soldering electrode PZT material
