PT1000K189
Piezohannas
PT1000K189

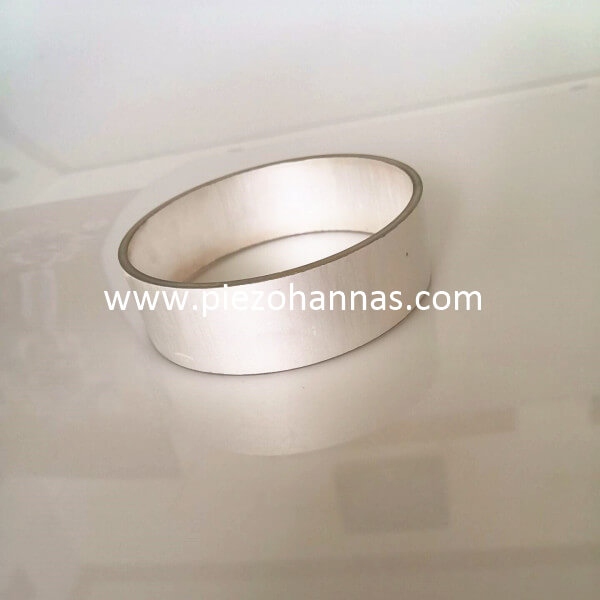

Stoc Piezo Ceirmeacht Tube Trasduchtóir piezoelectric le haghaidh Fuaimiúil Faoi Uisce
Is WuHan Piezohannas Tech.Co., Ltd manufactuer de criadóireacht piezoelectric, trasducers ultrasonaic le fórsa láidir teicneolaíochta. Le córas bainistíochta cáilíochta agus taighde agus earnáil forbartha, ár gcuid táirgí a úsáidtear go forleathan i bhfeidhmchláir is mó.
Cur síos ar Tube Ceirmeacht Piezo:
-Toisí: Ø76.2×Ø66×40mm
-Ábhar: PZT-5X
Paraiméadar Feidhmíochta Feadáin Ceirmeacha Piezo:
-Fs(Hz): 13068
-Fp(Hz): 13870
- K31:0.353
-C:(pf):75800
Tuairisc Tástála ar fheadán piezo Ø76.2×Ø66×40mm:
Trastomhas: 5.0 - 100mm
Tiús balla: 1 - 10mm
Airde: 2.5 - 50mm
Ábhar Bog PZT:
Ábhair PZT ' Bog ' |
An cineál ábhar bog |
||||||||
Airíonna |
PSnN-5 |
PLiS-51 |
PZT-51 |
PZT-52 |
PZT-53 |
PZT-5H |
PZT-5X |
||
Tairiseach Tréleictreach |
ɛTr3 |
1600 |
2000 |
2200 |
2400 |
2600 |
3200 |
4500 |
|
Fachtóir cúplála |
KP |
0.6 |
0.62 |
0.62 |
0.63 |
0.64 |
0.68 |
0.7 |
|
K31 |
0.35 |
0.35 |
0.35 |
0.35 |
0.36 |
0.38 |
0.4 |
||
K33 |
0.68 |
0.7 |
0.68 |
0.7 |
0.7 |
0.76 |
0.77 |
||
Kt |
0.5 |
0.52 |
0.5 |
0.5 |
0.5 |
0.52 |
0.53 |
||
Comhéifeacht piezoelectric |
d31 |
10-12m/v |
-170 |
-197 |
-186 |
-204 |
-227 |
-275 |
-300 |
d33 |
10-12m/v |
400 |
450 |
500 |
520 |
550 |
620 |
750 |
|
g31 |
10-3vm/n |
-12 |
-11.1 |
-9.6 |
-9.8 |
-9.9 |
-9.7 |
-7.5 |
|
g33 |
10-3vm/n |
28 |
25.4 |
25.6 |
24.5 |
23.9 |
22 |
18.8 |
|
Comhéifeachtaí minicíochta |
Np |
2000 |
1920 |
1980 |
1980 |
1960 |
1900 |
1960 |
|
N1 |
1466 |
1407 |
1451 |
1451 |
1437 |
1393 |
1437 |
||
N3 |
1825 |
1925 |
1900 |
1900 |
1755 |
1550 |
1800 |
||
Nt |
2100 |
2100 |
2150 |
2150 |
2150 |
2100 |
2200 |
||
Comhéifeacht comhlíonta leaisteacha |
Se11 |
10-12m2/n |
16.6 |
18 |
16.7 |
17 |
17.4 |
18 |
19 |
Fachtóir cáilíochta machanical |
Qm |
85 |
80 |
80 |
75 |
75 |
70 |
65 |
|
Fachtóir caillteanas tréleictreach |
Tg δ |
% |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
Dlús |
ρ |
g/cm3 |
7.5 |
7.5 |
7.6 |
7.6 |
7.6 |
7.5 |
7.5 |
Teocht Curie |
Tc |
°C |
350 |
345 |
270 |
270 |
270 |
230 |
165 |
Modal Young |
TÁ11 |
<109N/m2 |
60 |
56 |
60 |
59 |
57.5 |
56 |
53 |
Cóimheas Nimhe |
0.36 |
0.36 |
0.36 |
0.36 |
0.36 |
0.36 |
0.39 |
||
