1.Product Description

Dimension:

Outer Dimension: 18mm

Inter Dimension:  15mm

Height:  15mm

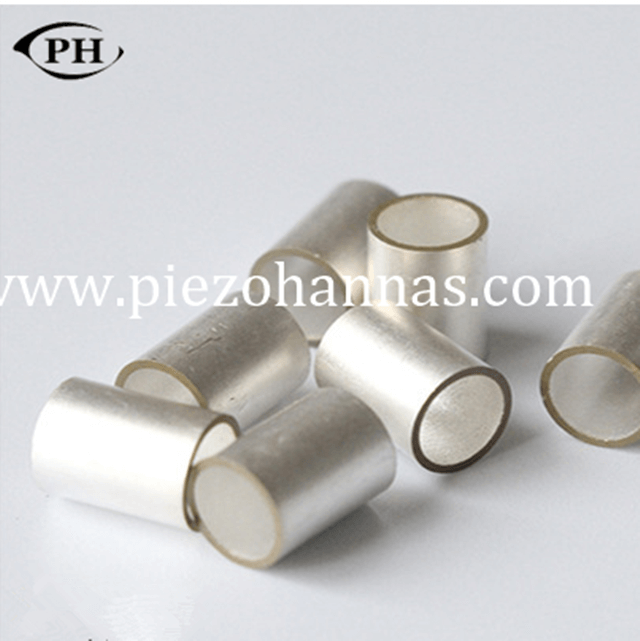

Tube Piezoelectric Ceramic:

Mainly used for assembling large ultrasonic transducer array or adhesive in various kind of curved beam to measure the impact

and vibration.It also can be used to assemble various kind of vibration pickup and acoustic pick up.Sometimes,the cross section

with a certain angle trapezoid used to assemble high-power and lower frequency of mosaic pipe which is used in active sonar

equipment.

Application: used for  the ocean project,sonar, hydrophone , underwater comunications device,

displacement of mirror for laser optics by several micrometers and others.

2.Some Standard Size of PiezoTube

The range of piezo tube:

Diameter: 5.0 - 100mm
Wall thickness: 1 - 10mm
Height: 2.5 - 50mm

Specification of Tube Piezoelectric Ceramic (1)

Specification of Tube Piezoelectric Ceramic (2)

Specification of Tube Piezoelectric Ceramic (3)

3.PZT Material

We usually provide P-41,P-42,P-43,P-51,P-52,P-53,P-81,P-82,P-83,PSnN-5,

PMgN-51,PZT-5H,PZT-5X,PCrN-4,PliS-51,PbaS-4,PbaS-5,BaTio3..

PZT materials are categorized as functional ceramics. In sensors they make it possible toconvert forces,
pressures and accelerations into electrical signals, and in sonic and ultrasonic transducers
and actuators they convert electric voltages into vibrations or deformations.Piezoelectric materials
are classified according to their chemical composition on the one hand, and by the specific
application conditions on the other.

 PZT ceramic is used in a wide variety of applications. Soft (sensor) PZT ceramic powders are typically used
when high coupling and/or high charge sensitivity are important, such as in flow or level sensors;
ultrasonic nondestructive testing/evaluation (NDT/NDE) applications; or for accurate inspections of automotive,
structural or aerospace products. Material characteristics include a high dielectric constant; high coupling;
high charge sensitivity; high density with a fine grain structure; a high Curie point; and a clean, noise-free
frequency response.

Hard (high power) PZT ceramic powders are used when high power characteristics are required,
including applications such as the generation of ultrasonic or high-voltage energy in ultrasonic cleaners,
sonar devices, etc. Important powder characteristics include a high piezoelectric charge constant (d33); a
higher mechanical quality factor that reduces mechanical loss and enables a lower operating temperature; a
low dissipation factor that ensures cooler, more economical operation; high dielectric stability; and low
mechanical loss under demanding conditions.

4.Applications of Piezoelectric Ceramics

5. Features

1.High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
2.High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
3. Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
4. Good construction: fastened by bolt, easy for assembling, high reliability.
5. The life of more than 5000 hours

6.High electromechanical conversion efficiency

6.Our service

Package :at first ,we all use dual-layer foam to wrap the piezo ceramics duo to its frangibility,then we use suitable the box to put it inside and stick tightly to make sure it perfectly.

Delivery Time:standard product will be shipped out within 2 working days after payment received.

Payment Methods: T/T,Paypal,West Union

Warranty:100% brand new when leaving the factory. The seller guarantee quality of the products (excluding wearing parts) for a period of 1 year from the date of trial run finish under our technician's guidence.
