PHW-500-AS
Piezohannas
PHW-500-AS

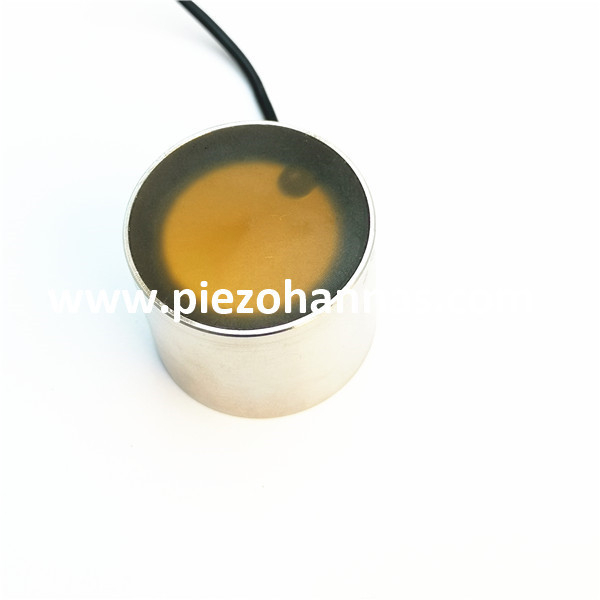

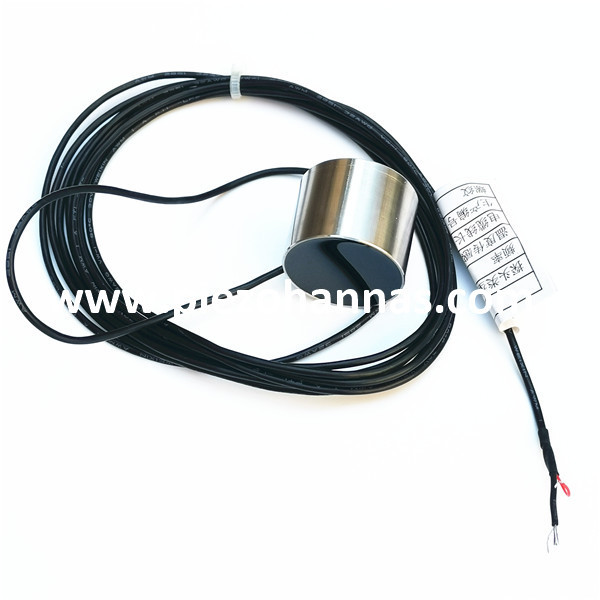

500KHz Stainless Steel Ultrasonic Depth Transducer for Ultrasonic Rangefinder
Technical parameters:
Items | Technical Parameters | Image | |
Name | 500KHz underwater depth transducer |
| |
Model | PHW-500-AS | ||
Frequency | 500KHz±5% | ||
Detection Distance | 0.30 ～ 30m | ||
Minimum Parallel lmpedance | 200Ω±20％ | ||
1900pF±20％ @1KHz | |||
Sensitivity | Driving Voltage：23 V、Distance:0.3m、 Echo Amplitude:300 mV | ||
-10～+50℃ | |||
(Beamwidth)Half-power Beam Width@-3dB:7°±10%， Sharp Angle:15°±10% | |||
Housing Material | 304 | ||
Usage | Underwater rangefinder | ||
Checking product structure diagram below | |||
Protection Level | IP68 | ||
Weight | 52g±5％（Length：2.5m） | ||
Wiring Instructions | White:transducer+，Black: transducer-, | ||
Admittance Curve | Product Structure Diagram | ||
|
| ||
Block diagram of ultrasonic transducer :
Schematic Diagram of Temperature Sensor (model: MF58_502F3470):
Integrated type Cable instruction:
1.Wiring instruction of transducer: interface (3pin, 2.54mm terminal)
Red: transducer +
White: transducer -
Black: shielding
2.Cable Instruction of Temperature Sensor: interface (3pin, 2.0mm terminal)
Red and black are temperature sensor wiring
Split type: standard 10m cable, with each additional 50m of cable, the signal attenuation is 6dB
Three-core wiring instructions:
Red: Transducer +
Blue: temperature sensor +
Black: Public-
Four-core wiring instructions:
Red: Transducer +
Yellow: Transducer-
Blue, black: temperature sensor
Ultrasonic Rangefinder Application:
An ultrasonic range finder sensor enables a robot to detect obstacles in its path by utilizing the propagation of high-frequency sound waves. The sensor emits a frequency sound wave, which bounces off a reflective surface and returns to the sensor. Then, using the amount of time it takes for the wave to return to the sensor, the distance to the object can be computed. To increase the sensing range, the sensor can be mounted to a servo to allow it to rotate.
