PZ1000K072
Piezohannas
PZ1000K072

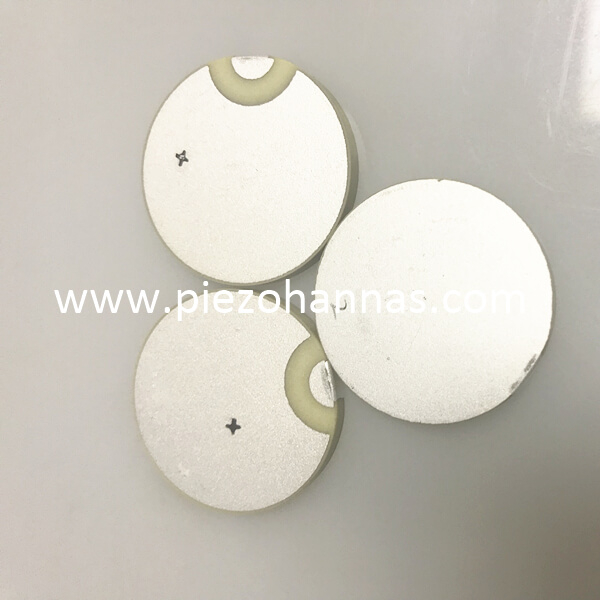

PZT material piezoelectric disc transducer applications for amplifier
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
Piezo Ceramics Disc Description:
- Piezo Material: PZT-4
- Dimensions: Φ10×0.75mm
-Thickness frequency(MHZ):3±15%
- Resonance Impedance: ≤ 2Ω
- Static Capacitance: 1000 ± 15%PF
- Electrode: Nickel electrodes on each side
- Vibration mode: Thickness mode
range of piezo disc to produce:
Diameter: 2mm-120mm
Thickness:0.1mm-30mm
Manufacturing process:
