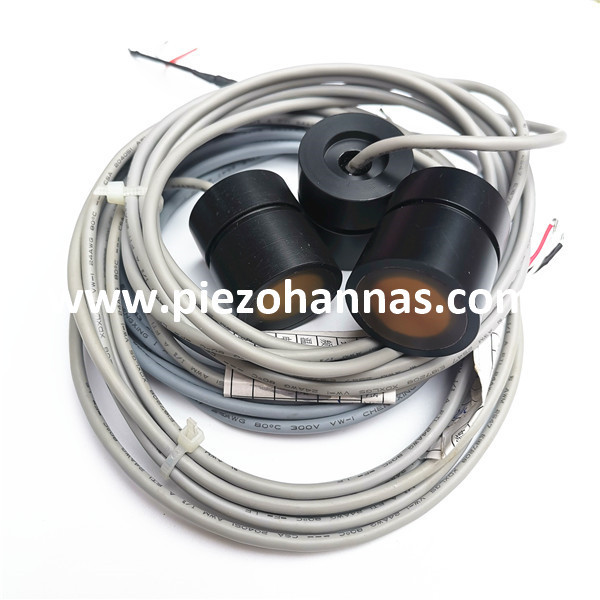

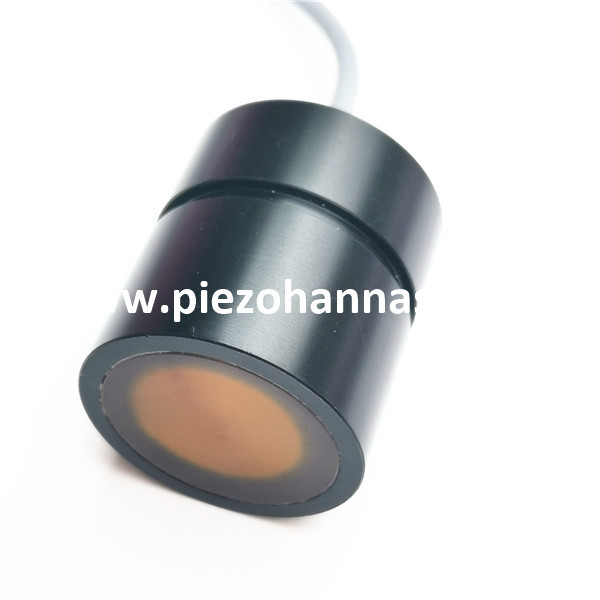

Custom 650KHz Ultrasonic Mud Level Transducer Sensor
1.Technical parameters：
Items | Technical Parameters | Image | |
Name | 650KHz Mud level transducer |
| |
Model | PHW-650-01E | ||
Frequency | 650KHz±5% | ||
Detection Distance | 0.3～25m | ||
Minimum Parallel lmpedance | 75Ω±20％ | ||
1900pF±20％ @1KHz | |||
Sensitivity | Driving Voltage：24 Vpp、Distance: 0.3m、 Echo Amplitude：850 mV | ||
-40～+80℃ | |||
≤3Kilos or 0.3MPa | |||
| (Beamwidth) Half-power Beam Width@-3dB:6.8°±1， Sharp Angle：16.1°±2 | ||
Housing Material | POM | ||
Usage | ultrasonic flowmeter，submarine range finder | ||
See the product structure drawing | |||
Protection Level | IP68 | ||
Weight | 65g±5％（Length：2m） | ||
Wiring Instructions | Red+，White-，Black: shielded wire； （without temperature sensor by default） | ||

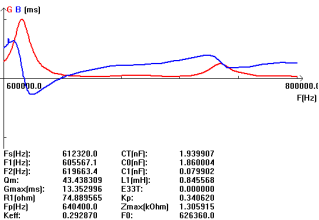

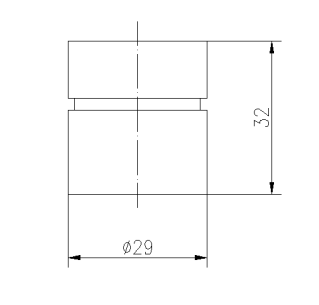

Admittance Curve | Product Structure Diagram | ||
|
| ||
2.Temperature Sensor Schematic Diagram of Transducer , Test Circuit Schematic Diagram
