PHYW-1M-02S
Piezohannas
PHYW-1M-02S

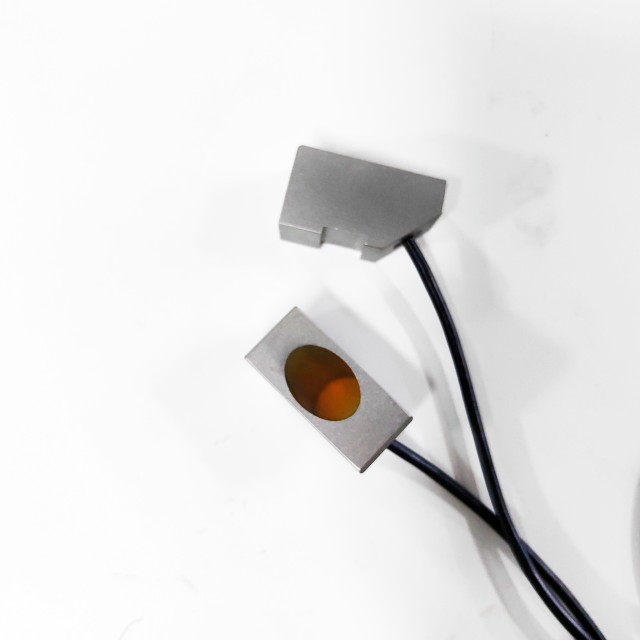

1MHz Clamp-on Ultrasonic Transducer for Water Flow Measurement
Specifications:
Items | Technical Parameters | Image | |
Name | 1MHz ultrasonic transducer |
| |
Model | PHYW-1M-02S | ||
Frequency | 1MHz±5% | ||
Minimum Parallel lmpedance | 220Ω±20% | ||
1200pF±20% @1KHz | |||
Sensitivity | No-load drive voltage:24V,distance 0.3m, echo amplitude:400mV | ||
Peak Voltage<300Vpp | |||
-40~+80℃ | |||
≤10Kilos or 1MPa | |||
Housing Material | 304+PI | ||
Usage | Clamp-on flow detection and so on | ||
Install size | See product structure drawing for details | ||
Protection Level | IP68 | ||
Weight |
72g±5%(Length:1m) | ||
Wiring Instructions | Red: Transducer +, white: Transducer - Black: shield ( temperature sensor is optional)
| ||
Admittance Curve | Product Structure Diagram | ||
|
|
Block diagram of ultrasonic transducer :
Schematic Diagram of Temperature Sensor:
Clamp-on ultrasonic flowmeter Application:
Clamp-on ultrasonic flowmeters showcase the benefits of digital signal processing: market-leading accuracy, noise immunity and reliability. Need more convincing? There’s also the high-speed data update rate and superior user-friendliness at every stage of installation and operation. With no pressure drop or energy loss, a wide turndown ratio and non-intrusive sensors that can be installed without cutting into the pipe – you can’t go wrong with clamp-on for liquid flow measurement.
1MHz Clamp-on Ultrasonic Transducer for Water Flow Measurement
Specifications:
Items | Technical Parameters | Image | |
Name | 1MHz ultrasonic transducer |
| |
Model | PHYW-1M-02S | ||
Frequency | 1MHz±5% | ||
Minimum Parallel lmpedance | 220Ω±20% | ||
1200pF±20% @1KHz | |||
Sensitivity | No-load drive voltage:24V,distance 0.3m, echo amplitude:400mV | ||
Peak Voltage<300Vpp | |||
-40~+80℃ | |||
≤10Kilos or 1MPa | |||
Housing Material | 304+PI | ||
Usage | Clamp-on flow detection and so on | ||
Install size | See product structure drawing for details | ||
Protection Level | IP68 | ||
Weight |
72g±5%(Length:1m) | ||
Wiring Instructions | Red: Transducer +, white: Transducer - Black: shield ( temperature sensor is optional)
| ||
Admittance Curve | Product Structure Diagram | ||
|
|
Block diagram of ultrasonic transducer :
Schematic Diagram of Temperature Sensor:
Clamp-on ultrasonic flowmeter Application:
Clamp-on ultrasonic flowmeters showcase the benefits of digital signal processing: market-leading accuracy, noise immunity and reliability. Need more convincing? There’s also the high-speed data update rate and superior user-friendliness at every stage of installation and operation. With no pressure drop or energy loss, a wide turndown ratio and non-intrusive sensors that can be installed without cutting into the pipe – you can’t go wrong with clamp-on for liquid flow measurement.
