PHA-100-02FA-F
Piezohannas
PHA-100-02FA-F
100KHz Anti-corrosion Ultrasonic Transducer for Ultrasonic Level Meter
Piezo Hannas develops and manufactures piezo ceramics and transducers for a diverse range of applications, including air-ranging industrial transducers, and depth transducers, flow meter transducer and our extensive line of underwater acoustics transducers.With a superior experienced team of scientists, designers, engineers and technicians as well as a vertically integrated business model, Piezo Hannas has the capability of fabricating innovative and cost-effective products.
Technical parameters:
Items | Technical Parameters | Image | |
Name | 100KHz Anti-corrosion transducer |
| |
Model | PHA-100-02FA-F | ||
Frequency | 100KHz±5% | ||
Detection Distance | 0.15～1.5m | ||
Minimum Parallel lmpedance | 1300Ω±20％ | ||
2000pF±20％ @1KHz | |||
Sensitivity | No-load driving voltage：300Vpp，Distance：0.6m， Echo amplitude 10mV | ||
peak voltage＜800Vpp | |||
-40～+80℃ | |||
≤3Kilos or 0.3MPa | |||
Housing Material | PTFE | ||
usage | Ultrasonic level meter, monitoring, collision prevention, security | ||
Size | See structure diagram for details | ||
Protection Level | IP68 | ||
Weight | 570g±5％(length：10m) | ||
Wiring Instructions | (Four wires): red: transducer +, white: transducer -, blue, black: temperature sensor wire (MF58-502F3470);
(Three lines): Red: Transducer +, Blue: Temperature sensor +, Black: Public -; | ||

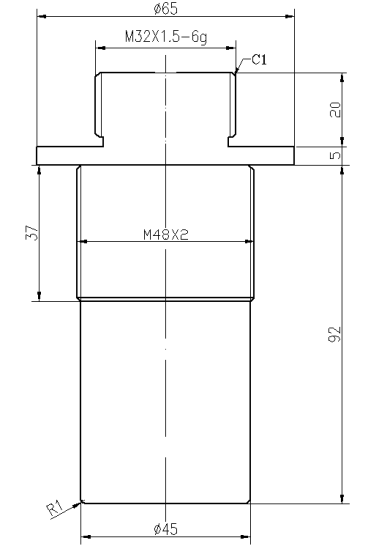

Admittance Curve | Product Structure Diagram | ||
|
| ||
Why do you choose our ultrasonic transducer :
1.Large models of ultrasonic transducer .
We have many different size and housing material help you to choose
2.Large stocks and fast delivery.
3. Owning much experienced team of scientists, designers, engineers and technicians
We can accept the drawing customization or any adjustment of old model
3.Stable performances and low unqualified rate for batch orders
4. Cost-effective alternative for other famous models
5. After -sevice and Technical support
